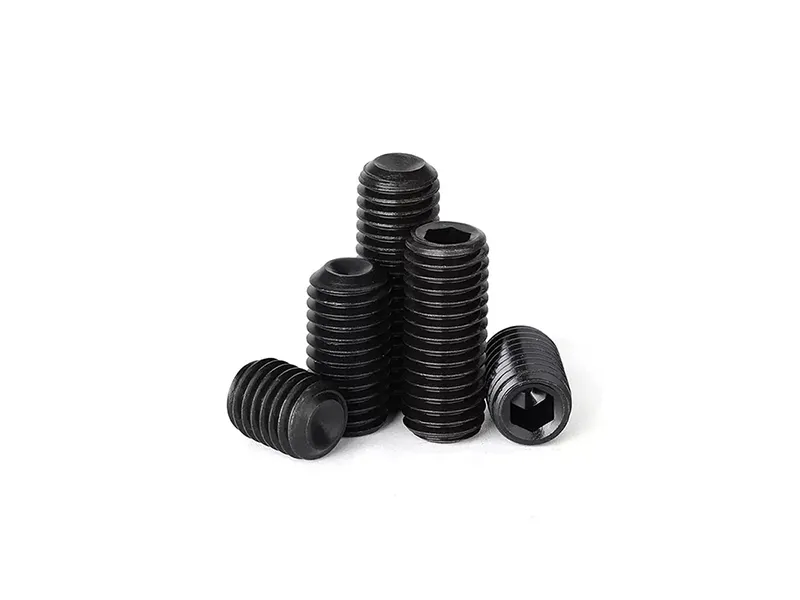

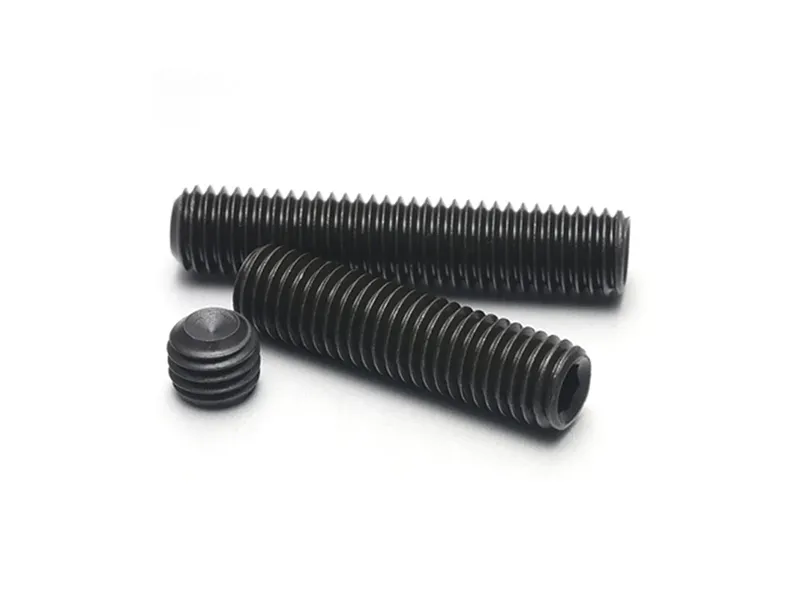

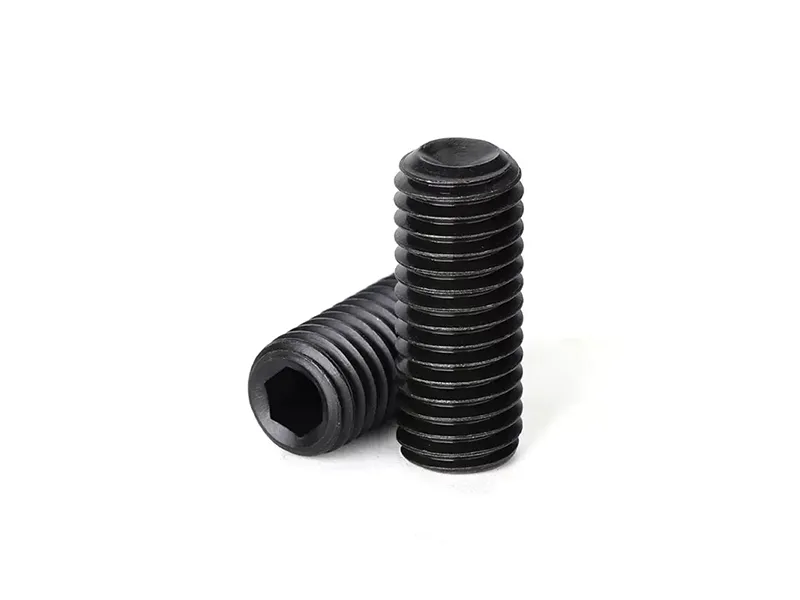

This flat-ended Set screw is manufactured from Grade 12.9 carbon steel, combining the load-bearing capacity of high-strength flat-ended Machine screws, the wear resistance of Grade 12.9 Alloy Steel Set Screws, and the stable positioning advantages of Carbon Steel Flat-Head Set Bolts.  It provides a reliable anti-loosening solution for heavy-duty transmission components.

Jiangxi Shine Hardware Co., Ltd

Add: Lutian Light Industry Base, Poyang County Industrial Park,

Shangrao City, Jiangxi Province, China

Tel:+86-577-88657999                  Fax:+86-577-86582727

Mob: +86-13362220303                Whatsapp:+86-13362220303

Web:www.jxshinehardware.com

Email: jason@jxshinehardware.com

Mechanical Fasteners are the unsung heroes of modern engineering, holding together everything from tiny electronic devices to massive industrial machinery. Among these, set Screws occupy a unique niche—headless, compact, and designed to transmit torque or fix components relative to one another without external nuts. Within the diverse family of Set Screws, the flat-ended variant stands out for its ability to secure parts without marring mating surfaces, making it ideal for applications where precision and surface integrity are paramount. When crafted from M12.9 grade carbon steel, this humble fastener transforms into a high-performance component capable of withstanding extreme loads, vibrations, and torque—making it indispensable in industries that demand uncompromising strength and reliability.

A flat-ended set screw is defined by its headless body, threaded shaft, and flat, perpendicular tip at one end, paired with a drive socket (typically hex) at the other. Unlike cup-point set screws, which embed into the shaft to create a mechanical lock, flat-ended screws rely on friction between the flat tip and the mating surface to hold components in place. This design offers two critical advantages: first, it avoids damaging the shaft or component (a boon for reusable parts), and second, it distributes clamPing force over a larger area, reducing stress concentration.

The absence of a head allows the screw to sit flush with or below the surface of the component it secures, making it ideal for applications with limited space or where a smooth profile is required. For example, in a gearbox, a flat-ended set screw can be recessed into a gear’s hub, ensuring no protrusions interfere with adjacent parts.

Heat treatment is the cornerstone of the 12.9 grade’s performance:

1. Quenching: The screw is heated to 850–900°C (1562–1652°F) and rapidly cooled in oil (to avoid cracking). This process transforms the steel’s microstructure into martensite, a hard but brittle phase.

2. Tempering: The quenched screw is heated to 500–600°C (932–1112°F) and held for a specific time before cooling. This step reduces brittleness while retaining high strength, resulting in a balanced combination of hardness (38–42 HRC) and toughness.

The unique combination of flat-tip precision and 12.9-grade strength makes these screws ideal for demanding applications across industries:

In heavy-duty gearboxes, flat-ended M12.9 set screws secure helical gears to shafts, transmitting torque up to 500 Nm without slipping. For example, a 20-tooth gear in a conveyor system’s drive gearbox relies on this screw to stay fixed to its shaft—even under the weight of 10-tonne loads. The flat tip ensures the gear’s bore remains undamaged, allowing easy disassembly during maintenance.

Performance car transmissions use these screws to fix synchronizer hubs to main shafts. During gear shifts, hubs experience sudden torque spikes (up to 300 Nm), and the 12.9 grade’s fatigue resistance prevents cracking over thousands of shifts. In differential assemblies, they secure side gears to the case, withstanding the rotational forces generated during acceleration.

Excavators and bulldozers use M12.9 flat-ended set screws to secure hydraulic pump shafts and bucket pins. These components are exposed to shock loads and vibrations, so the screw’s high yield strength ensures it doesn’t deform. For instance, an excavator’s bucket pin screw must resist 800 Nm of torque when lifting a 5-tonne load—something lower-grade screws cannot handle.

While critical aerospace components use titanium alloys, M12.9 flat-ended screws are used in engine test rigs. These rigs simulate flight conditions, applying loads of up to 1200 Nm to engine parts. The screw’s 1200 MPa tensile strength ensures it can withstand these extreme forces without failure.

The production of M12.9 flat-ended set screws involves rigorous steps to ensure quality:

1. Wire Drawing: Low-carbon steel wire is drawn through dies to reduce its diameter, increasing strength via cold working.

2. Cold Heading: Blanks are cut from the wire and formed into screws using high-pressure punches. This process preserves the metal’s grain structure, enhancing fatigue resistance.

3. Thread Rolling: Rotating dies press threads into the body, creating stronger threads than machining (since it work-hardens the material).

4. Heat Treatment: Quenching and tempering as described earlier.

5. Surface Coating: To prevent corrosion, screws are coated with zinc plating (passivated), black oxide (aesthetic and wear-resistant), or Dacromet (superior corrosion protection for harsh environments).

Flat-ended set screws made from M12.9 grade carbon steel are a testament to engineering excellence. Their precision design and exceptional strength make them indispensable in industries where reliability is critical. From gearboxes to construction equipment, these screws play a silent but vital role in keeping our world moving. By understanding their properties and best practices, engineers can harness their full potential to build systems that stand the test of time.
