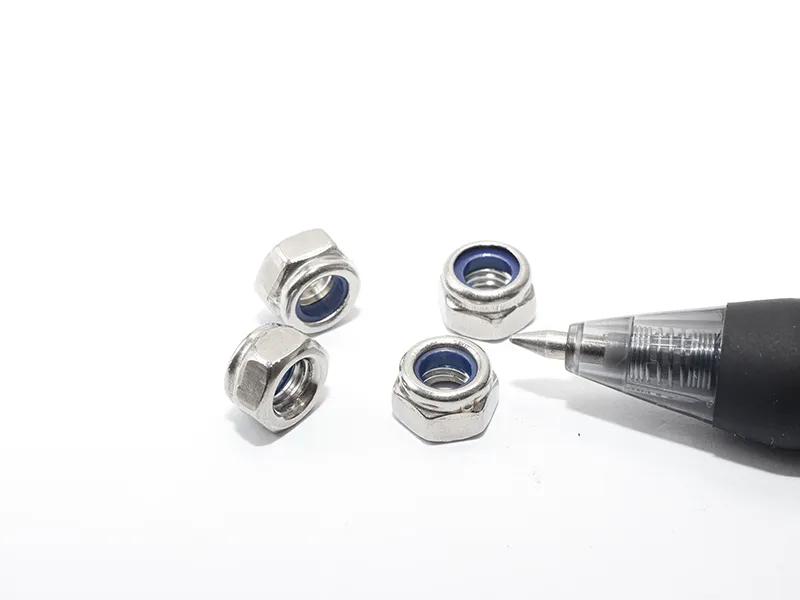

External Hexagon Sealing Nut uses 316 stainless steel or nickel-plated brass as the "Nut Material" and comes with a built-in elastic rubber ring. Tightening completes the seal. It is a quick and easy solution in the "nuts and Screws" combination that can withstand pressure and prevent leakage, eliminating the need for additional gaskets. It is suitable for valves, pump bodies and outdoor enclosures.

Shanghai Yijun Precision Technology Co., Ltd.

Product application：Precision Electroics、Medical devices、LED display、Tablets、Robot、Mechanical parts、Mobile communication、Glasses clock、Intelligent Wearing、Instrumentation、Unmanned aerial vehicle、Automotive parts

Fasteners are the unsung backbone of modern engineering, holding together everything from tiny electronic devices to massive industrial machinery. Among these essential components, the external hexagon sealing nut stands out for its unique ability to combine mechanical fastening with leak-proof performance. Unlike standard nuts that only secure two parts together, this specialized nut is designed to prevent the escape of fluids or gases from the connected assembly, making it a critical component in applications where sealing integrity is non-negotiable.

The external hexagon shape is a key feature of this nut, offering distinct advantages over other designs. With six flat sides, it provides a larger contact area for tools such as sockets or hex wrenches, allowing for higher torque application without slipPing. This is particularly important in high-pressure or high-vibration environments where nuts need to stay securely tightened. The sealing function, meanwhile, is achieved through various mechanisms—from integrated gaskets and O-rings to Thread Sealants—each tailored to the specific requirements of the application.

The design of an external hexagon sealing nut is a careful balance between mechanical strength and sealing efficiency. Let’s break down the key elements:

The six-sided profile is not arbitrary. It allows for optimal force distribution when using tools, reducing the risk of rounding off the edges (a common issue with Square nuts, which have fewer contact points). This shape also enables the use of standard tools, making installation and removal easier in most settings.

There are several common sealing mechanisms used in these nuts:

Flange with Integrated Gasket: Many external hexagon sealing nuts feature a flange (a widened base) with a built-in rubber or plastic gasket. When the nut is tightened, the flange compresses the gasket against the mating surface, creating a watertight or airtight seal. This is widely used in automotive and plumbing applications.

Thread Sealing: Some nuts rely on the threads themselves to create a seal. This is often enhanced by using thread sealants like PTFE tape or liquid sealants. The threads are designed to interlock tightly, filling any gaps that could allow fluid or gas to escape.

O-Ring Groove: Another design involves a groove cut into the nut’s surface where an O-ring is placed. When tightened, the O-ring is compressed between the nut and the mating part, forming a reliable seal. This is common in high-pressure applications like hydraulic systems.

The choice of material depends on the application’s environment and requirements:

Stainless Steel: 304 stainless steel is corrosion-resistant and suitable for most general-purpose applications. 316 stainless steel, with added molybdenum, offers superior resistance to saltwater and acidic environments, making it ideal for marine and chemical industries.

Brass: Brass is non-magnetic, corrosion-resistant, and compatible with water, making it a popular choice for plumbing fittings. It also has good thermal conductivity, which is beneficial in applications involving temperature changes.

Aluminum: Lightweight and corrosion-resistant, aluminum nuts are used in aerospace and automotive applications where weight reduction is critical. They are often anodized to enhance their durability.

Plastic: Nylon or PEEK nuts are used in low-pressure, non-corrosive environments such as electrical enclosures or consumer goods. They are lightweight and insulating but not suitable for high temperatures or heavy loads.

Each material is chosen to ensure the nut can withstand the operating conditions—whether it’s high pressure, extreme temperatures, corrosive chemicals, or vibration.

The production of external hexagon sealing nuts involves several steps, each critical to ensuring quality and performance:

1. Raw Material Preparation

The process starts with selecting the right raw material (e.g., stainless steel bar, brass rod). The material is cut into blanks of the appropriate length using a saw or shearing machine.

2. Forming

There are two main forming methods:

Forging: This is the preferred method for high-strength nuts. The blank is heated to a high temperature (above the recrystallization point of the metal) and then shaped using dies under high pressure. Forging improves the metal’s grain structure, making the nut stronger and more resistant to fatigue.

Casting: For lower-strength applications, casting is used. Molten metal is poured into a mold of the desired shape. While cheaper, cast nuts may have internal defects (like porosity) that can affect sealing performance, so they are not recommended for critical applications.

3. Machining

After forming, the blank undergoes machining to refine its shape:

Threading: Threads are created either by cutting or rolling. Thread cutting uses a tap or die to remove material, while thread rolling deforms the metal to create threads. Rolling is preferred because it strengthens the threads (by work-hardening) and produces a smoother surface.

Hexagon Shaping: The external hexagon is formed using milling machines or Stamping presses. Milling involves removing material from the blank to create the six sides, while stamping uses pressure to shape the hexagon.

Sealing Feature Integration: Depending on the design, this step involves adding the sealing element. For example, a groove for an O-ring is milled into the nut’s surface, or a gasket is attached to the flange using adhesive or press-fitting.

4. Surface Treatment

To enhance corrosion resistance and appearance, the nut may undergo surface treatment:

Plating: Common plating methods include zinc plating (for corrosion resistance), nickel plating (for a shiny finish), or chrome plating (for durability).

Anodizing: Aluminum nuts are often anodized to create a protective oxide layer on the surface.

Passivation: Stainless Steel Nuts are passivated (treated with acid) to remove free iron from the surface, improving corrosion resistance.

5. Quality Control

Rigorous quality checks are performed at every stage:

Dimensional Inspection: Calipers, micrometers, and coordinate measuring machines (CMMs) are used to verify that the nut meets the specified dimensions (thread pitch, hex size, seal groove depth).

Leak Testing: Nuts are subjected to pressure testing to ensure they do not leak. For example, they may be immersed in water and pressurized—bubbles indicate a leak.

Mechanical Testing: Hardness tests (like Rockwell or Brinell) are done to check the nut’s strength, and torque tests to ensure it can withstand the required load.

Corrosion Testing: Salt spray tests are performed to evaluate the nut’s resistance to corrosion.

Only nuts that pass all these tests are shipped to customers, ensuring that they meet the highest quality standards.

The external hexagon sealing nut is used in a wide range of industries due to its versatility and sealing capabilities:

Automotive Industry

Engine Components: Nuts are used to seal the oil pan (preventing oil leaks), valve covers (sealing against engine oil and debris), and fuel injectors (sealing against fuel vapor).

Fuel Systems: They secure fuel lines and filters, ensuring no fuel leaks (critical for safety and efficiency).

Brake Systems: Sealing nuts are used in brake calipers and master cylinders to prevent brake fluid leaks (a failure here can lead to loss of braking power).

Aerospace Industry

Hydraulic Systems: In aircraft, hydraulic lines (used for landing gear, flaps, and brakes) rely on sealing nuts to withstand high pressure (up to 3000 psi) and vibration.

Fuel Systems: Sealing nuts secure fuel tanks and lines, ensuring no fuel leaks in high-altitude environments.

Avionics: They are used in electronic enclosures to seal against moisture and dust, protecting sensitive equipment.

Plumbing and HVAC

Pipe Fittings: Sealing nuts connect pipes for water, gas, and sewage systems. For example, they are used in hot water heaters to seal the inlet/outlet pipes.

HVAC Systems: They secure refrigerant lines, preventing leaks of coolant (which can reduce efficiency and harm the environment).

Industrial Machinery

Hydraulic Cylinders: Construction equipment (like excavators and bulldozers) uses sealing nuts in hydraulic cylinders to prevent fluid leaks.

Pneumatic Systems: Sealing nuts are used in air compressors and pneumatic tools to seal against air leaks.

Manufacturing Equipment: They secure components in machines like presses and conveyors, ensuring no fluid leaks (e.g., lubricants).

Renewable Energy

Solar Energy: Sealing nuts are used in solar panel racking systems to seal against rainwater, preventing corrosion of the mounting hardware.

Wind Energy: They secure wind turbine blades to the hub, sealing against moisture and wind (critical for offshore wind turbines, which are exposed to saltwater).

In each of these applications, the external hexagon sealing nut plays a vital role in ensuring safety, reliability, and efficiency. A single leak can lead to costly downtime, environmental damage, or even catastrophic failure (like an aircraft crash or a gas explosion), so choosing the right nut is essential.

Proper installation is crucial to ensure the nut performs as intended. Here are some key best practices:

1. Follow Torque Specifications: Always use a torque wrench to apply the exact torque recommended by the manufacturer. Over-tightening can damage the threads or the seal; under-tightening leads to loosening and leakage.

2. Prepare the Mating Surface: Clean the mating surface with a solvent (like isopropyl alcohol) to remove dirt, grease, or old sealant. Check for burrs or scratches—if present, file them smooth.

3. Choose the Right Sealing Method: For O-ring nuts, ensure the O-ring is the correct size and material (nitrile for oil, Viton for high temps). For thread-sealing nuts, wrap PTFE tape clockwise (3-4 layers) or apply liquid sealant.

4. Use Correct Tools: Use a socket or hex wrench that fits the nut’s hex size exactly. Using the wrong size can round off edges, making removal impossible later.

5. Inspect After Installation: Run the system and check for leaks (drips for fluids, bubbles from soapy water for gases). If a leak is found, retighten to specs or replace the seal.

By following these practices, you can ensure the nut provides a reliable seal and long-lasting performance.

The external hexagon sealing nut is a small but indispensable component in modern engineering. Its unique combination of mechanical strength and sealing efficiency makes it ideal for diverse applications—from automotive engines to aerospace hydraulic systems. Proper design, manufacturing, installation, and maintenance ensure it performs reliably, preventing leaks and ensuring safety. As technology advances, this humble nut will continue to evolve, remaining a critical part of engineering for years to come.
